Take you to understand the transportation labels and pictograms of dangerous goods

Dangerous Goods Transport Label

What is dangerous goods? According to the "Classification and Product Names of Dangerous Goods" (GB 6944-2012), substances and items with hazardous characteristics such as explosion, flammability, toxicity, infection, corrosion, radiation, etc., which are prone to cause personal injury, property damage, or environmental pollution during transportation, storage, production, operation, use, and disposal and require special protection.

The UN number in the "List of Dangerous Goods Names" (GB 12268-2012) starts with 0004 (ammonium picrate) and ends with UN number 3495 (iodine).

Classification of dangerous goods

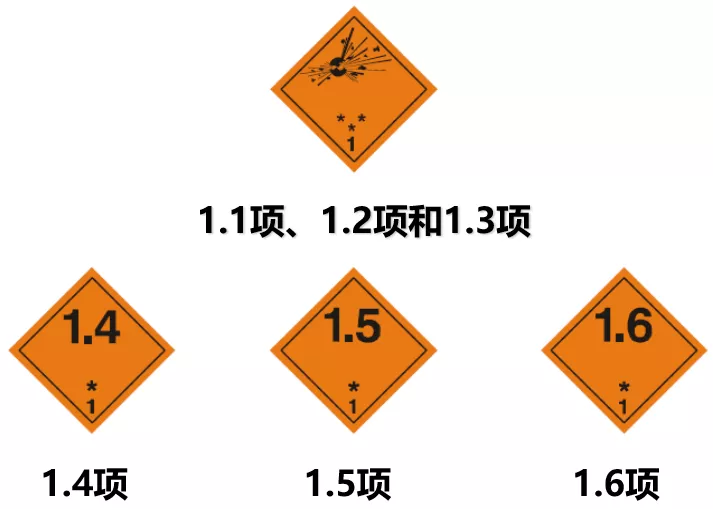

Class 1 Explosives

1.1: Substances and items with a risk of overall explosion.

1.2: Substances and items that pose a risk of explosion but do not pose a risk of overall explosion.

Item 1.3: Substances and items with a burning hazard and a risk of local explosion or burst, or both, but no overall explosion hazard.

1.4: Substances and items that do not present significant hazards.

Item 1.5: Very insensitive substances with an overall explosion risk.

Class 2 gas

Item 2.1: Flammable gas.

Item 2.2: Non flammable and non-toxic gas.

Item 2.3: Toxic gases.

Class 3 flammable liquid

There is no sub item for flammable liquids.

Class 4 Flammable Solids

4.1: Flammable solid;

Flammable solid;

Self reactive substances;

Solid desensitized explosive.

4.2: Substances that are prone to spontaneous combustion;

Item 4.3: Substances that emit flammable gases when exposed to water.

Category 5 oxidizing substances and organic peroxides

5.1: Oxidizing substances;

Item 5.2: Organic peroxides.

Category 6 toxic and infectious substances

6.1 toxic substances;

6.2 Infectious substances.

Class 7 radioactive substances

There is no sub item for radioactive substances.

Class 8 corrosive substances

There is no sub item for corrosive substances.

Class 9 miscellaneous hazardous substances and items, including environmentally hazardous substances

There are no sub items for miscellaneous hazardous substances and items, including environmentally hazardous substances.

Pictogram of hazardous chemicals

What is a hazardous chemical? According to the "Regulations on the Safety Management of Hazardous Chemicals" in China, "highly toxic chemicals and other chemicals with toxic, corrosive, explosive, combustion, and combustion supporting properties that are harmful to human health, facilities, and the environment" are not applicable to the safety management of civilian explosives, fireworks and firecrackers, radioactive materials, nuclear energy materials, and hazardous chemicals used in national defense research and production.

The "Catalogue of Hazardous Chemicals" (2015 edition) lists 2828 entries, with serial number 2828 being a category entry.

A pictogram is a graphic representation of the hazardous properties of a hazardous product. Specific requirements: a) Border: The red color should be wide enough and eye-catching; b) Symbol: black; c) Background: White. There are a total of 9 pictograms in the Globally Harmonized System of Classification and Labelling of Chemicals.

Differences between the two

（1） The applicable international regulations vary. Dangerous goods are subject to the United Nations' Recommendations on the Transport of Dangerous Goods (TDG), while dangerous chemicals are subject to the United Nations' Globally Harmonized System of Classification and Labelling of Chemicals (GHS).

（2） The biggest difference is that there are Arabic numerals at the bottom corner of the transportation label for dangerous goods, but there is no pictogram for dangerous chemicals. Take flammable gases as an example for specific analysis.
